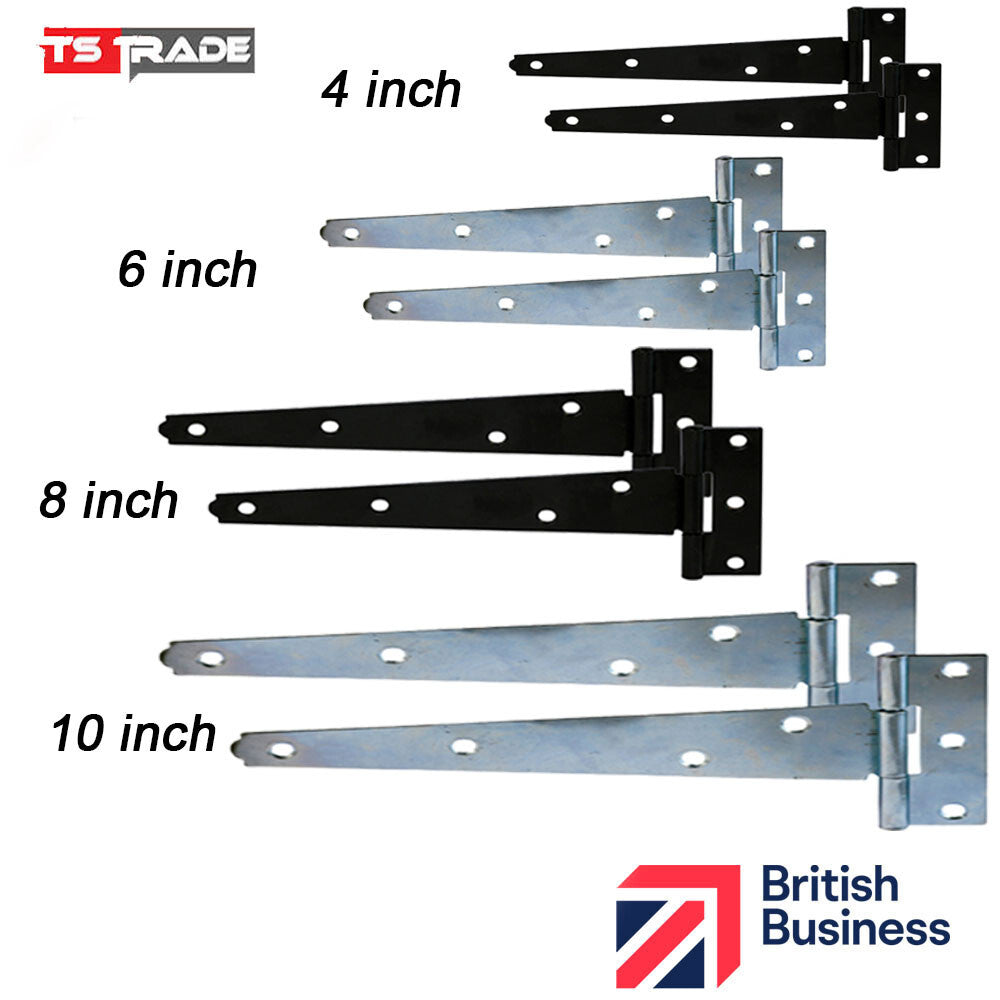

TEE HINGES Small-Large Outdoor Stable Door garden Gate Shed Metal T Hinge Pair
£3.99
incl. VAT
- Brand
- Tstrade
- SKU
- 5055893356371
Product details
T Hinges all come in pairs. Please select the quantity of pairs from the drop down selection.
Size Variations: Choose from a wide range of sizes, including 4", 6", 8", 10", 12", 18", and 24". Whether you're working on a small cabinet or a large gate, we have the right size hinge to meet your requirements.
| Hinge Type | Max Load Weight | Length | Thickness | Screw Holes | Fixings Option |
|---|---|---|---|---|---|
| Light 4" | 5 kg | 100 mm | 1.5 mm | 12 | 3.5 x 25mm Countersunk Screws (Qty 12) |
| Light 6" | 5 kg | 150 mm | 1.5 mm | 14 | 3.5 x 25mm Countersunk Screws (Qty 14) |
| Light 8" | 10 kg | 200 mm | 1.5 mm | 14 | 3.5 x 25mm Countersunk Screws (Qty 14) |
| Light 10" | 10 kg | 250 mm | 1.5 mm | 14 | 3.5 x 25mm Countersunk Screws (Qty 14) |
| Light 12" | 10 kg | 300 mm | 1.5 mm | 14 | 3.5 x 25mm Countersunk Screws (Qty 14) |
| Medium 10" | 30 kg | 250 mm | 1.8 mm | 14 | 4.0 x 30mm Countersunk Screws (Qty 14) |
| Medium 12" | 30 kg | 300 mm | 2 mm | 14 | 4.0 x 30mm Countersunk Screws (Qty 14) |
| Medium 14" | 30 kg | 350 mm | 2 mm | 14 | 4.0 x 30mm Countersunk Screws (Qty 14) |
| Medium 15" | 40 kg | 375 mm | 2 mm | 16 | 4.0 x 30mm Countersunk Screws (Qty 16) |
| Medium 16" | 40 kg | 400 mm | 2.2 mm | 18 | 5.0 x 30mm Countersunk Screws (Qty 18) |
| Medium 18" | 40 kg | 450 mm | 2.2 mm | 18 | 5.0 x 30mm Countersunk Screws (Qty 18) |
| Heavy Duty 10" | 40 kg | 250 mm | 2.3 mm | 14 | 4.0 x 30mm Countersunk Screws (Qty 14) |
| Heavy Duty 12" | 60 kg | 300 mm | 2.3 mm | 14 | 4.0 x 30mm Countersunk Screws (Qty 14) |
| Heavy Duty 14" | 60 kg | 350 mm | 2.3 mm | 18 | 5.0 x 30mm Countersunk Screws (Qty 18) |
| Heavy Duty 16" | 60 kg | 400 mm | 2.8 mm | 18 | 5.0 x 30mm Countersunk Screws (Qty 18) |
| Heavy Duty 18" | 60 kg | 450 mm | 2.8 mm | 18 | 5.0 x 30mm Countersunk Screws (Qty 18) |
| Heavy Duty 24" | 80 kg | 600 mm | 3 mm | 20 | 5.0 x 30mm Countersunk Screws (Qty 20) |
Reviews
Customer reviews help others choose the right product. Ratings and written reviews will appear here when available.
Technical specification
- SKU
- 5055893356371
- Brand
- tstrade
